Toyota, Lexus SRS connection and Boot Mode activation

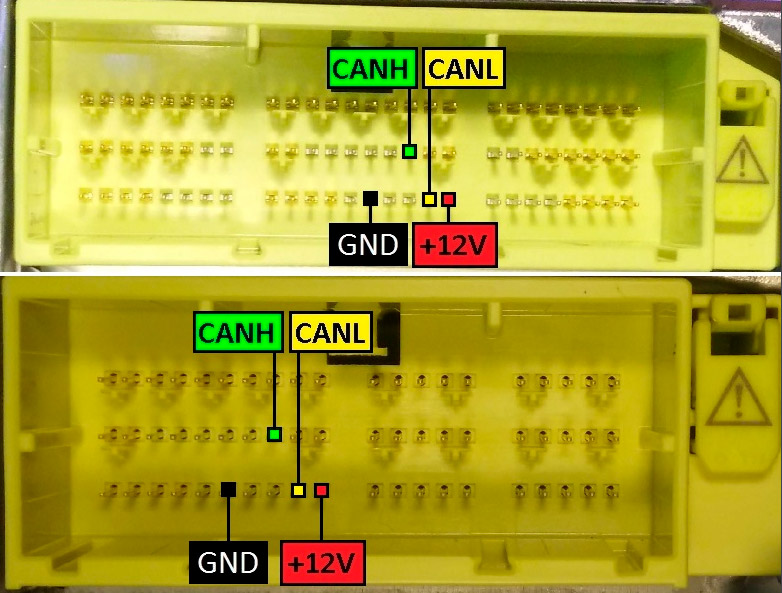

Connection to airbag control unit

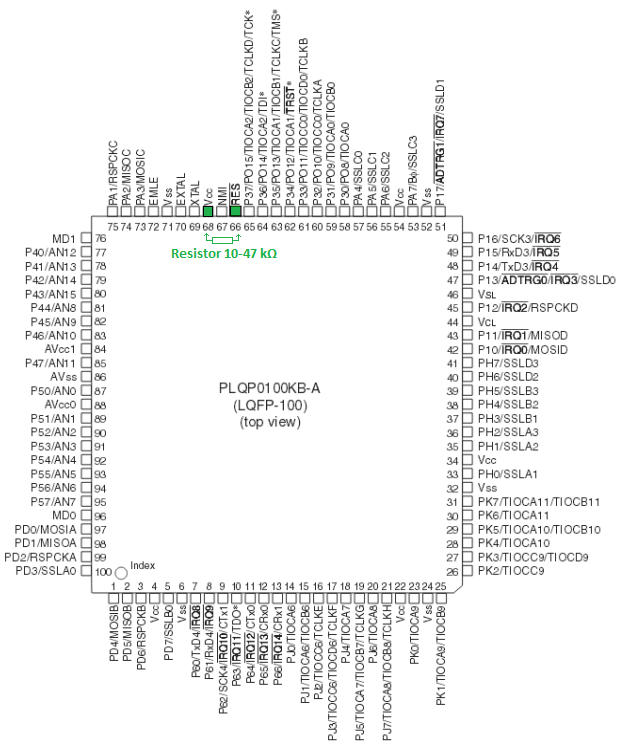

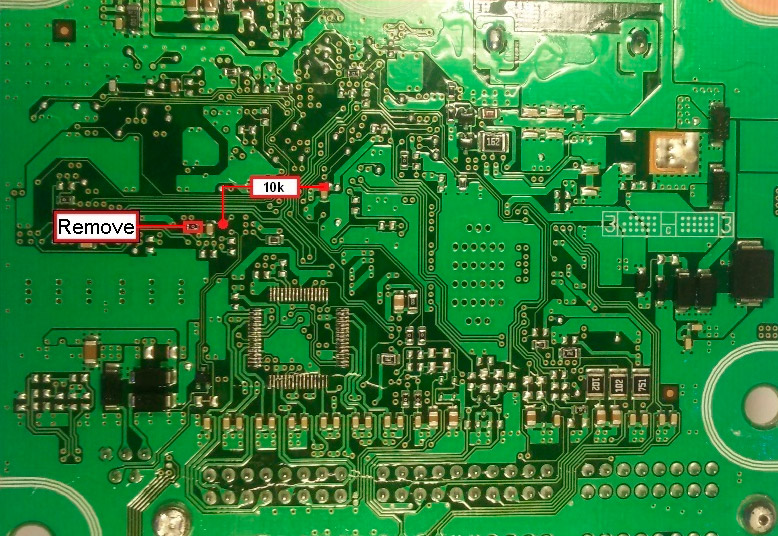

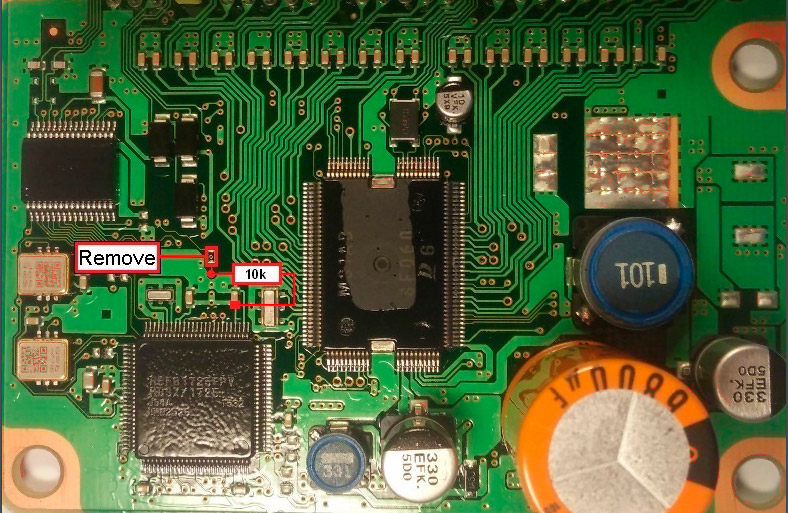

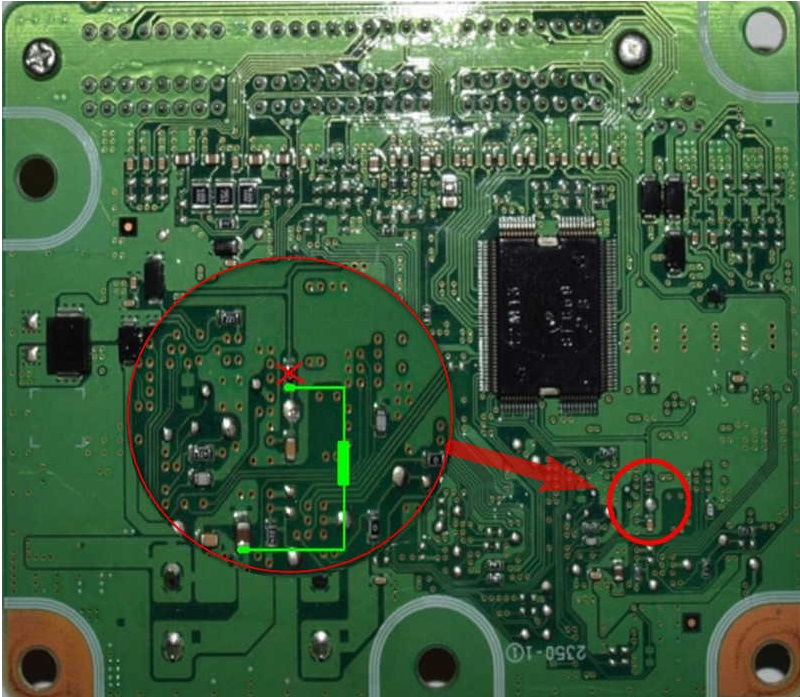

Connect a resistor 10-47 kΩ between Vcc and Reset pins. And remove resistor with resistance 0 Ohm from Reset circuit.
